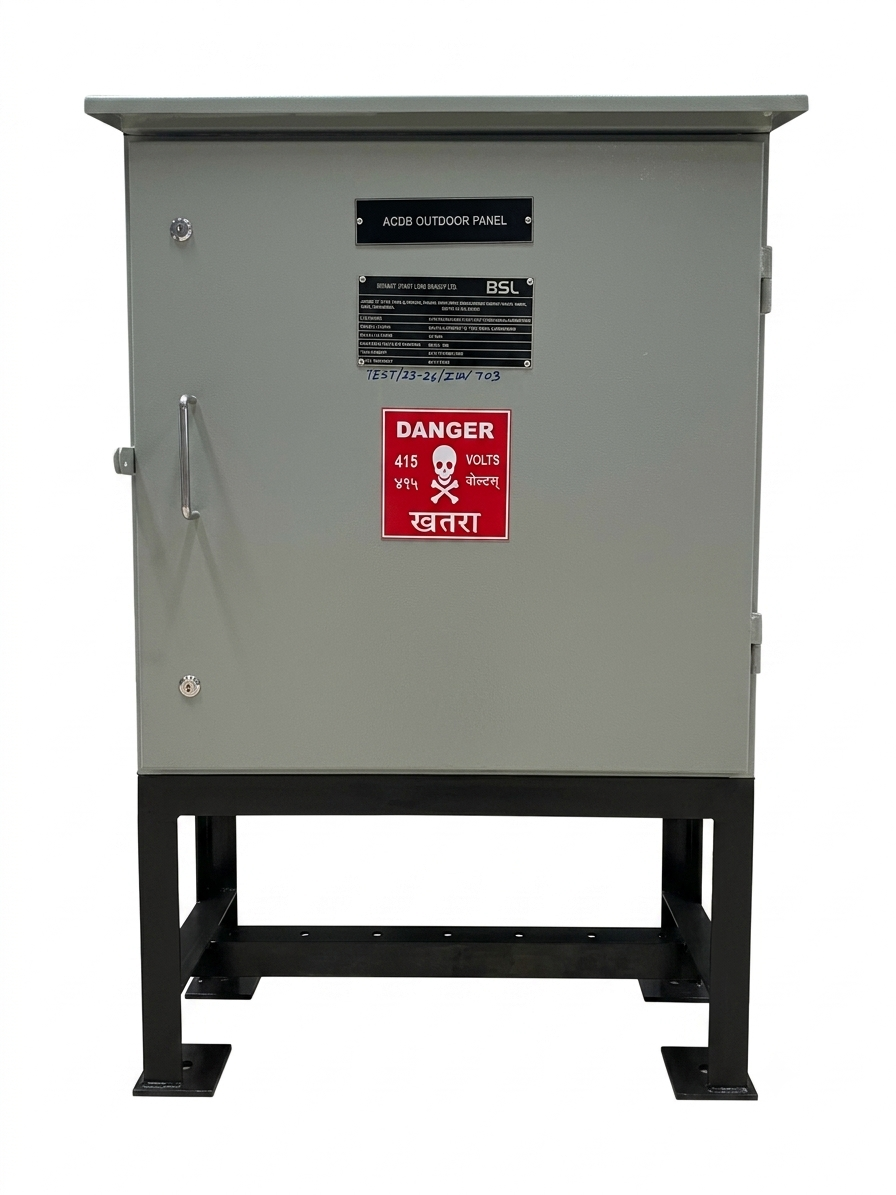

"A 3-phase auxiliary power distribution panel used in 33 kV substations, control rooms, and solar plants to supply LT power to lighting, panels, battery chargers, fans, and other loads."
| Parameter | Detail |
|---|---|
| Type | Outdoor AC Distribution Board, stand-mounted |
| Rating | 100 A, 415 V, 3-Phase, 4-Wire, 50 Hz |
| Incomer | 100 A, 3P MCCB (10 kA) |
| Outgoing Feeders | 6 × 32 A TP MCB + 12 × 16 A DP MCB (18 feeders total) |
| Busbar | Copper, 25 × 3 mm with colour insulation |
| Fault Level | 10 kA for 1 sec |
| Protection | IP-55, outdoor duty |
| Enclosure | CRCA, powder coated (IS-5 Shade 631) |
| Cable Entry | Bottom |
| Mounting | Floor / stand mounted |
