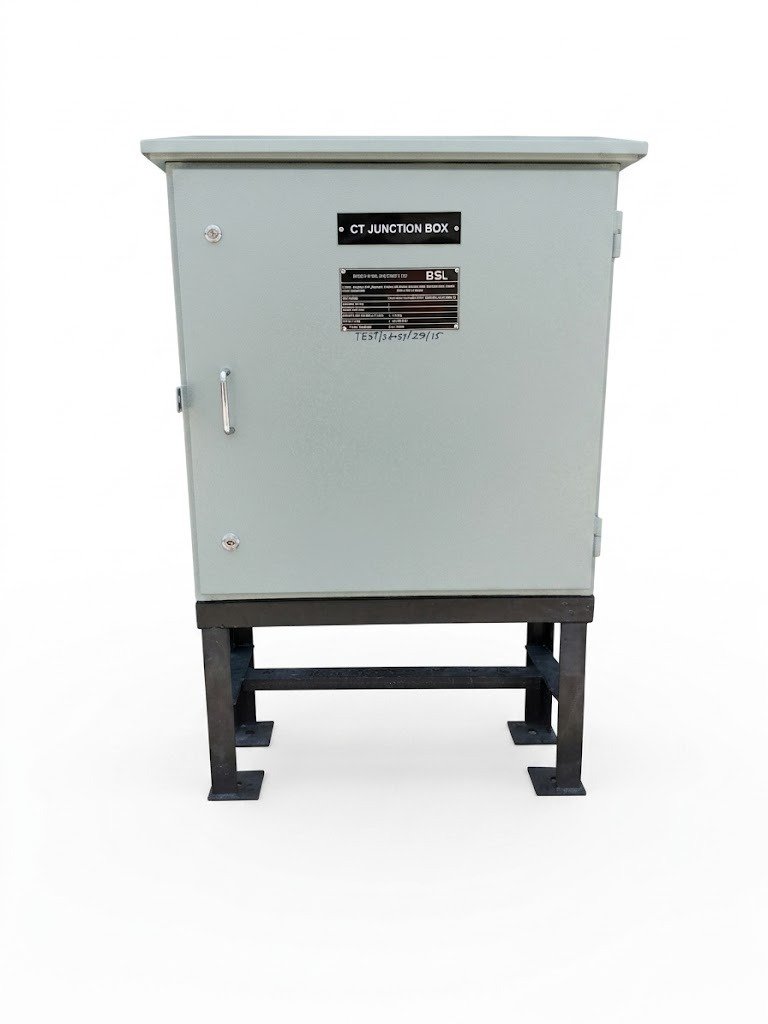

"Outdoor Current Transformer (CT) Junction Boxes are used to connect CT secondary wiring to protection and metering panels in substations."
| Parameter | Detail |
|---|---|
| Type | Outdoor CT Junction Box for CT secondary termination |
| Protection | IP-55 weatherproof |
| Size | 750 × 750 × 300 mm |
| Mounting | Floor-mounted on MS angle stand with canopy |
| Cable Entry | Bottom gland plate |
| Terminals | 60 Nos. disconnecting / test terminals (M5 stud type) |
| Earthing | GI earthing studs provided |
| Access | Front door with lock & handle (no rear access) |
| Finish | IS 631 shade, powder coated |

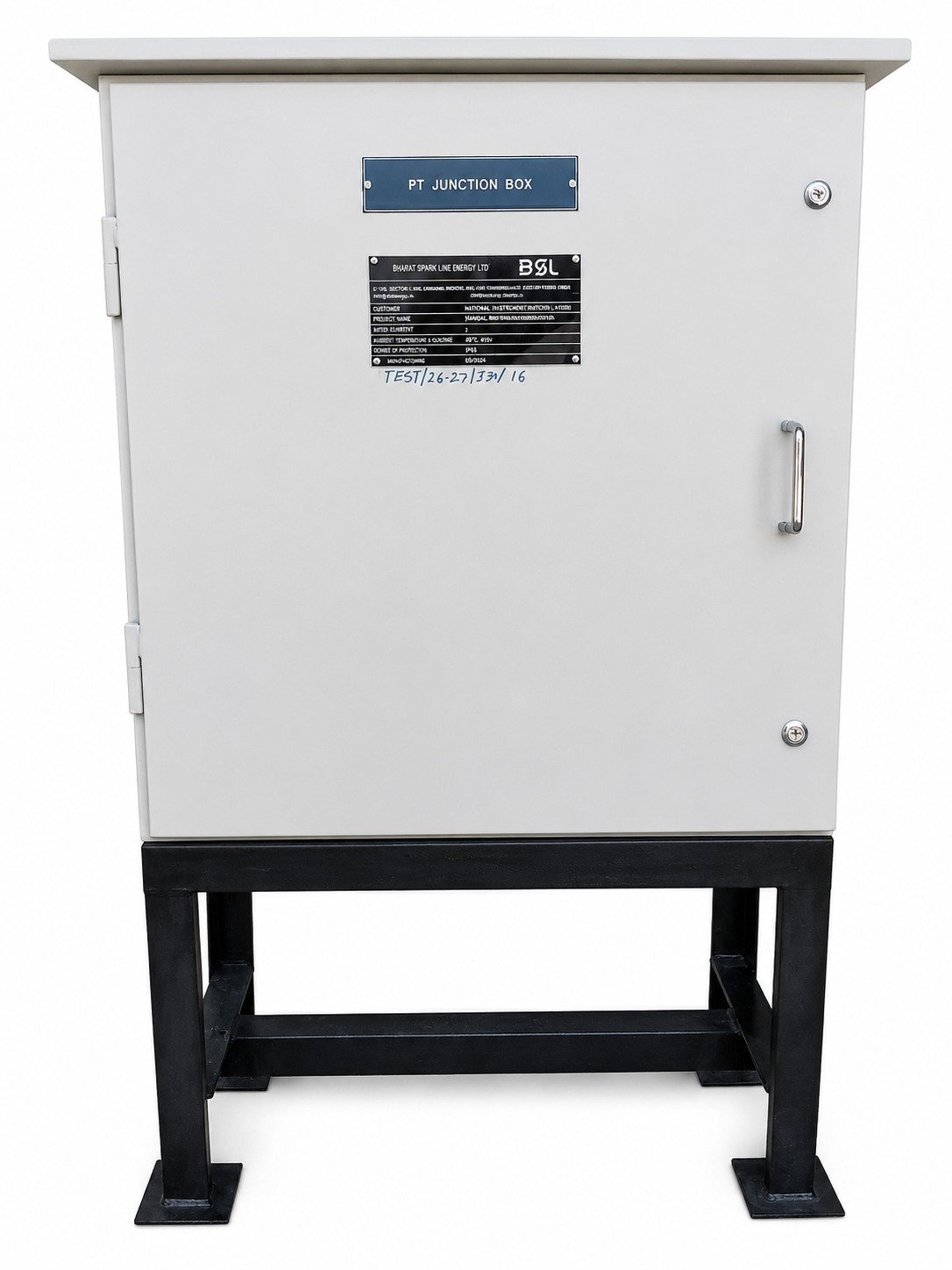

"Designed to manage secondary connections from EHV PTs or CVTs to control and relay panels in MSETCL substations."
| Parameter | Detail |
|---|---|
| Type | Outdoor, floor-mounted PT Junction Box |
| Size | 750W × 750H × 300D mm |
| Finish | Powder coated RAL 7032 (inside & outside) |
| Mounting | MS angle stand (50 × 50 × 5 mm) with foundation bolts |
| Cable Entry | Bottom, removable 3 mm gland plate |
| Door | Single door with lock, handle & lift-off hinges |
| Earthing | GI earthing stud + internal M10 earthing bolt |
| Component | Detail |
|---|---|
| Terminal Blocks | Disconnecting type, ~60 Nos. |
| Neutral Links | 3 Nos. |
| Fuse | 20 A HRC fuse & base |
| Socket | 5 A plug & socket |
| Cable Management | PVC wiring channels |
