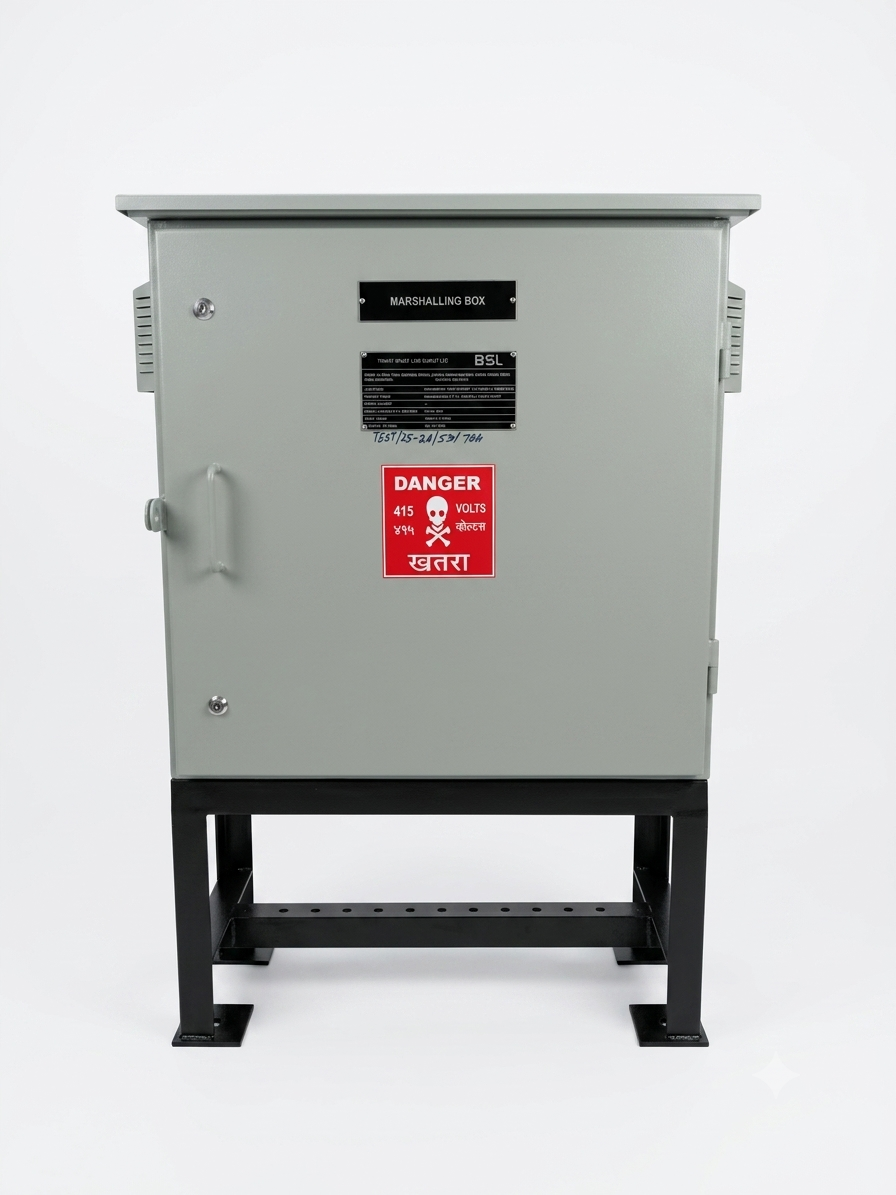

"Robust outdoor enclosure for safe termination and interconnection of transformer protection and monitoring accessories."
| Parameter | Detail |
|---|---|
| System Voltage | 240 / 415 V AC |
| Auxiliary Supply | 230 V AC (internal lamp & socket) |
| Terminal Type | M5 stud type terminal blocks |
| Terminal Capacity | 60 / 120 / 200 ways (as per requirement) |
| Fuse — Main | 160 A HRC fuse, DIN type, size 00 |
| Fuse — Control | 20 A clip-on type, 550 V, 80 kA |
| Internal Lighting | 40 W lamp with switch socket combination |
| Feature | Specification |
|---|---|
| Enclosure | Outdoor, IP-55 weatherproof cabinet |
| Mounting | Floor-mounted with pedestal & foundation bolts (20 × 150 mm) |
| Cable Entry | Bottom entry with removable gland plate |
| Door | Single door, industrial lock + handle; lift-off hinges with brass pin & bush |
| Canopy | Provided for rain protection |
| Earthing | GI earthing bolts + earthing stud |
| Hardware | Electro-galvanized nuts & bolts |
